Pneumatic lines painted and fuel bay modificaiton update

The pneumatic lines have been reinstalled in the aircraft after being cleaned and painted.  Much of the painting is done by hand inside the aircraft.  (Black lines are pneumatic, yellow lines are fuel)

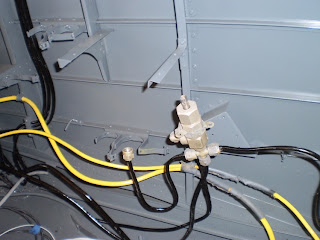

Front cockpit right rear.

Front cockpit right front.

Front cockpit left.

Rear cockpit lines to landing gear actuator.

Rear cockpit right side.

FUEL TANK MODIFICATION

Extended range fuel tanks with a capacity of 58 gallons total are being installed.  The work involved cutting out and reinforcing a rib to accommodate the larger tanks.  Below is some of that work.

Primered part shows rib reinforcement riveted into place.

An additional strap is used to secure the tank outboard of the original two.  Shown here is the strap attach bracket riveted into place.
